The Cannular brand launched the manual can seaming machine at the start of 2019 with the the world's first bench-top canning machine that was affordable and accessible to home brewers worldwide. It gave home brewers and craft brewers the ability to get into small scale canning while still maintaining very low DO, seam tightness and lock in beverage quality.

Since then the Cannular canning machines have become the worlds most popular canning machines ever manufactured, selling worldwide in America, Europe, UK, New Zealand and Australia. On the back of this success KegLand then has further built the Cannular brand name to deliver a Semi-Auto canning machine and now is delighted to bring out the Cannular Full Auto Single Lane Canning Line.

In essence with the whole Cannular range it depends on fundamentally simple processes and when combined with modern engineering provide an elegantly simply solution to small scale packaging.

The Cannular Fully Auto Single Lane Packaging Line will suit a small to medium sized brewery doing batches from 1000L and up to 5000L.

Specifications:

Single Phase 230V
Supplied as standard with a CDL chuck that suits 202 can bodies.

Compact Size
The compact footprint means this canning line is almost the size of a standard pallet so it can be stowed into pallet racking or wheeled out of the way easily.

Hardened Chuck
The chucks on this machine are made from Cr12MoV which is then coated with Titanium. This grade has superior hardness so it can last an extremly long time without needing to re-tune the machine or change the chuck. The hardness is 58-62 dH. If you are particularly concerned about corrosion of the chuck we can also custom make stainless steel chuck on request. For stainless steel chucks we can use the Quench Polish Quench process to harden the stainless steel. It should be noted that the stainless chuck is more expensive and is less hard than the Cr12MoV alloy and as a result we do not normally recommend this alternative but it can be manufactured if requested.

Setup and Washdown
As the machine is fairly compact the wash down is extremly simply. The whole opperating deck can be washed down with a hose and the chassie is mounted with oversized drip tray to catch stray drips from the filling process. The deck can also be plumbed to waste so cleaning in place (CIP) can be implemented. All wet areas are made from nylon, teflon and 304 stainless steel.

Maintenance
Made with European phenumatics, electronic controllers, flow sensors and industrial grade PLC you can be confident that all components are build to last the distance and designed to handle millions of cans before requiring an overhaul. We recommend that tolerances are checked on the rolls and chuck every 100,000 cans and lubricate some of the pnuematics. Fortunately all spare parts are supplied by KegLand so you know we are not going to shaft you on replacement parts in the unlikely instance that you need them. No major overhauls will be required until well over 1 milliion cans have gone through this machine and even when that time comes the maintenance procedures are relatively straight forward. Obviously every unit is backed by KegLand's legendary customer service.

Significant CPM for the Footprint
This canning line is able to package 15 cans per minute making this the highest output machine ever manufactured within this small footprint.

Low Labour Cost
As this machine is relatively simple to run one operator can load cans and lids into the respective hoppers and also package cans from the output of the machine. Larger more complicated machines often require several operators to run making this labour efficient for such a small machine size.

*Imagen referencial. Precios y stock disponible podrían variar sin previo aviso. Se sugiere solicitar cotización formal previo al pago del(los) producto(s).

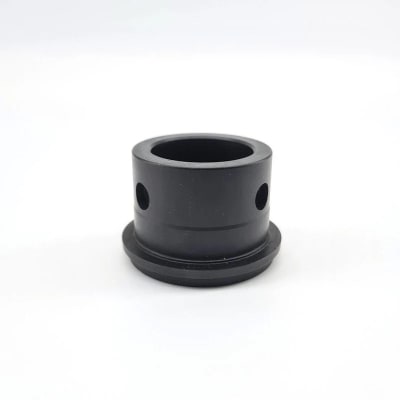

Chuck CDL - Cannular Fully Auto
